1 Door Unit |
2 Door Unit |

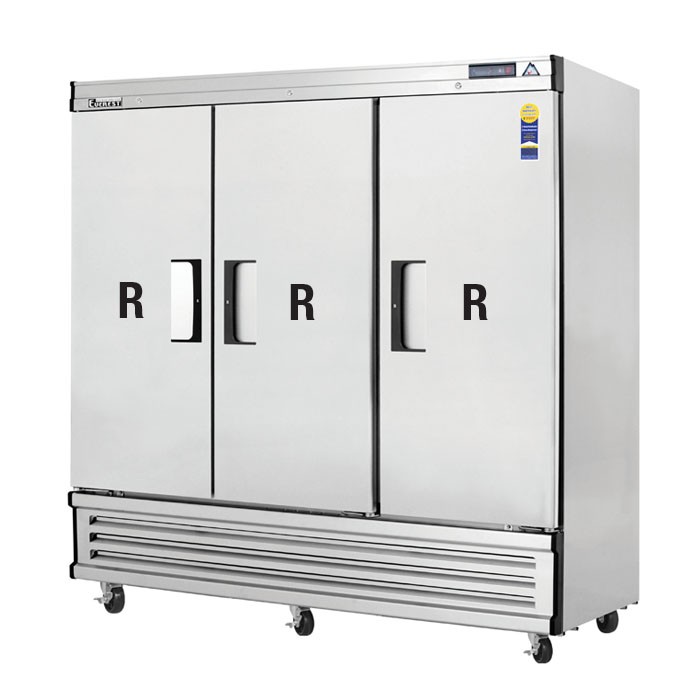

3 Door Unit |
|
CONSTRUCTION
Heavy duty 430 series stainless steel exterior and top grill. Anodized aluminum finished top, bottom and back of exterior. High quality 304
series stainless steel interior, ABS evaporator drain cover. Insulated with 2.5" thick high density foamed-in-place CFC free polyurethane foam.
Four 4" diameter casters (front casters with brakes). Door heater installed around inside cabinet frame to prevent moisture build up.
Refrigeration System
Self-contained condensing unit located at top of cabinet for high performance.
Oversized condenser and evaporator coil cools to set temperature in a minimum time period and maintains it.
Environmentally friendly CFC free 134A refrigerant
Adjustable defrost cycle between every 3 to 6 hours with 400 watt heater. Time initiated, and both temperature and time terminated for fail-safe backup. Automatic evaporator fan motor delay on defrost cycle.
Built-in 80 watt condensate pan heater located at bottom of cabinet composed of anodized aluminum interior and galvanized steel exterior
Pressure relief port located at exterior back wall for rapid re-entry
One 115 volt/60 cycle / 1 phase NEMA5-15P Plug for all refrigerators.
Factory preset temperature, 35°F. Operation of compressor and all other electrical components is govern by digital monitoring system(PCB control Box) behind from grill
Doors
430 Series Stainless Steel exterior with 304 series stainless steel interior. Insulated with 2.5" thick, foamed-in-place, CFC free polyurethane foam.
Rounded corners for a sleek and modern appearance. Heavy duty adjustable torsion spring self-closing door system.
One piece gasket for easy replacement.
Heavy duty recessed door handles that stay out of the way.
Shelving
Three(3) epoxy coated interior shelves per section.(Optional 304 series Stainless Steel Shelves)
46.5" Pilasters and shelf chips made of 304 Series stainless steel.
Digital Temperature Monitoring System
Easy to read digital temperature display.
Easy to set temperature by simply pushing buttons on PCB Control Box
Microchip digital monitoring system (PCB control box) provided with various function for monitoring and maintaining ideal temperature. Temperature range from 32°F to 41°F. |
Model |
Description |
Price |
ESR1 |
All Interior & Exterior Stainless Steel; 1 Door Refrigerator |
$1,450.00 |
ESF1 |
All Interior & Exterior Stainless Steel; 1 Door Freezer |
$1,750.00 |
ESRF2 |
All Interior & Exterior Stainless Steel; 2 Door Refrigerator Freezer |
$2,860.00 |
ESR2 |
All Interior & Exterior Stainless Steel; 2 Door Refrigerator |
$2,065.00 |
ESF2 |
All Interior & Exterior Stainless Steel; 2 Door Freezer |
$2,675.00 |
ESF3 |
All Interior & Exterior Stainless Steel; 3 Door Freezer |
$3,739.00 |
ESR3 |
All Interior & Exterior Stainless Steel; 3 Door Refrigerator |
$3,170.00 |
ESRF3 |
All Interior & Exterior Stainless Steel; 3 Door Refrigerator Freezer |
$3,610.00 |
|
|
|
