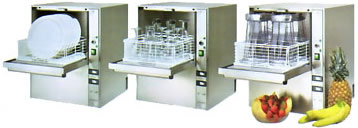

F-14 High temp



F-14 High Temp
Multipurpose Counter-top Ware Washer

$1,919.00

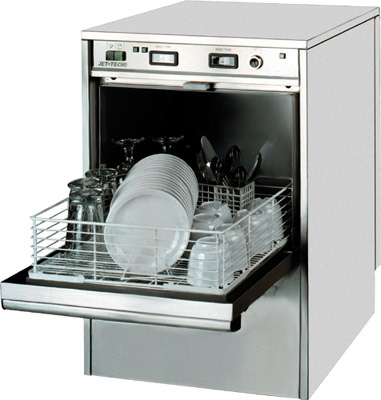

F-16DP High Temp
Undercounter Cup & Glasswasher

$2,675.00

F-16DP High Temp Undercounter Cup & Glasswasher
Construction Features

• Upper removable integrated control panel for ease of operation and technical maintenance
• Body, external housing, wash tank, and all components in brushed 18/8 stainless steel
• Built for free standing installation with all top and side panels of double-walled construction for low heat and noise emissions
• Wash and rinse jets on lower revolving arm with upper rinse jets on dual fixed arms all constructed of fiberglass & easy to clean and remove
• Integrated 18/8 stainless steel booster
• Safety micro-switch stop action on the door if opened during wash cycle
• Thermostatic regulation of both wash and rinse temperatures
• Automatic fill and water level regulation of tank * Inner wash tank provided with pump filter for protection of wash motor
• Independently-operated heating elements alternating between booster and wash tank
• Alternating elements reduce maximum amperage therefore reducing total energy costs Technical Features
• Rack capacity: 15.75 in. x 15.75 in. (400mm. x 400mm.)
• Standard equipment includes: One 16-compartment (4x4) angled-section glassware rack, one open combination rack for cups, bowls, cutlery and assorted wares, and one 15-place saucer rack insert
• Complete operating cycle: 120 seconds
• Single phase electrical power supply: 208-220V 60Hz. 15 AMPS
• Tank element: 2000 Watts
• Booster elements: 2400 Watts
• Maximum absorption: 2600 Watts
• Wash tank capacity: 3.0 US Gallons (11 liters)
• Booster capacity: 0.87 US Gallons (3.2 liters)
• Water consumption per cycle: 0.5 US Gallons (1.9 liters)
• Working pressure (dynamic): 30 p.s.i.
• Water inlet connection: 3/4 inch flexible garden-hose type connection
• Drain (gravity-type) connection size: 1.0" (26mm)

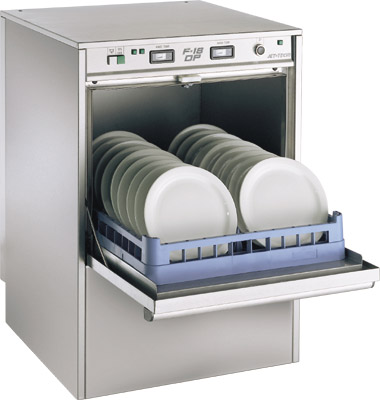

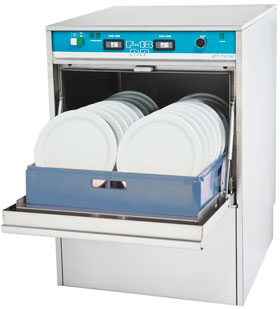

F-18DP High Temp
Undercounter Dishwasher

$3,195.00

Performance Features

• Completely automatic wash and rinse cycles of 150F. (65C) and 185F. with individual analog temperature gauges
• Automatic injection of rinse-additive with built-in pump
• Built-in automatic detergent pump for consistent washing results
• Performance and capability per hour: ~400 11" plates or up to 600 glasses (rack 5x5)
• Rating of 24 racks per hour
• OPTIONAL: F-18DP - can be provided for an additional charge with a factory-installed automatic drain pump for ease of installation



• Upper removeable integrated control panel for ease of operation and technical maintenance
• Body, external housing, wash tank, and all chassis components in brushed stainless steel AISI type 304 18/8
• Built for free standing installation with all side and top panels of double-walled construction for low heat and noise emissions
• Upper and lower wash and rinse jets on revolving arms constructed of fiberglass and easy to clean and remove
• Integrated 18/8 energy-saving stainless steel booster is a standard feature
• Entire wash tank area protected with perforated stainless steel scrap filters plus additional shield for tank element
• Safety micro-switch stop on the door to interrupt wash pump action
• Thermostatic control of wash and rinse temperatures
• Automatic fill and water level regulation of tank
• Inner wash tank provided with pump filter for protection of wash motor
• Independently-operated heating elements alternating between booster and wash tank
• Alternating elements reduce maximum amperage therefore reducing total energy costs




• Dish rack capacity: 19.75 in. x 19.75 in. (500 mm. x 500 mm.)
• Complete cycle: 160 seconds (145 sec. wash & 15 sec.rinse)
• Single-phase electrical power supply 208-220 V. 60Hz. 22 AMPS
• Motor-pump 0.75 H.P. with thermal overload protection
• Wash tank element: 2800 Watts
• Booster element: 4000 Watts
• Maximum power absorption: 4550 Watts
• Wash tank capacity: 7.25 U.S. gallons (26 liters)
• Booster capacity: 2.20 U.S. gallons (8 liters)
• Water consumption per cycle: 0.78 U.S. gallons (3 liters).
• Working pressure: 30 psi. (dynamic)
• Water inlet connection: 3/4 in. flexible garden-hose type connection
• Drain connection: F-18 = 1.5 in. F-18DP = 1.0 in.
• Weight: 165 lbs. (75 kg)



F-20 High Temp Dish & Tray Washer
Construction Features

• Upper removeable integrated control panel for ease of operation and technical maintenance
• Built for free standing installation with all top and side panels of double-walled construction for low heat and noise emissions
• Body, external housing, wash tank, and all chassis components in brushed stainless steel AISI 304 type 18/10
• Noise of only 58dba due to utilization of sound-limiting panels providing thermic and acoustic insulation
• Ergonomically designed for ease of loading / unloading racks which is performed at arm level; therefore eliminating the need to bend
• Very practical for churches, schools, retirement homes, assisted living, and for the washing of trays to a maximum size of 13" x 20"
  Built with fully enclosed cabinet base which can be used as storage area
• Upper and lower revolving wash and rinse arms constructed of fiberglass and easy to clean and remove
  Integrated 18/10 stainless steel booster with insulated lining
• Safety micro-switch on the door to interrupt wash pump action
• Independently-operated heating elements alternating between booster and wash tank
• Alternating heating elements reducing maximum absorption thereby reducing energy costs
• Individual analog thermometer gauges for both wash & rinse temperatures
• Automatic fill and water level regulation of the wash tank
• Inner wash tank protected with double full scrap filters with an additional filter provided for the protection of the wash pump motor
• Door-opening with a maximum height clearance of 13.5" (35 cm.)

Technical Features

• Rack capacity: 19.75" x 19.75 " (500 mm. x 500 mm.)
• Complete cycle: 120 seconds (105 sec. wash & 15 sec. rinse)
  Single-phase electrical power supply: 208-220 V 60Hz. 34 AMPS.
• Motor-pump 1.25 H.P. with thermal overload protection.
• Wash tank element: 4000 Watts
  Booster element: 6000 Watts
• Maximum power absorption: 7000 Watts
• Wash tank capacity: 7.5 US gallons ( 28 liters)
• Booster Capacity: 2.2 US gallons (8 liters)
• Water consumption per cycle: 0.78 US gallons (3 liters)
• Working pressure: 30 p.s.i. (dynamic)
• Water inlet connection: 3/4" flexible garden-hose type connection
• Drain connection: 1.5" (38mm.)
• Weight: 190lbs (86Kg)



• Rack capacity: 15.75 in. x 15.75 in. (400 x 400 mm.)
• Complete operating cycle: 120 seconds (105 seconds wash & 15 seconds rinse)
• Single-phase electric power supply 208-220V. 60 Hz. 14 .4 AMPS
• Motor pump: 0.75 H.P. with clipson at 320F. (160C.) and motor insulation in class F
• Tank element: 2000 watts
• Booster element: 2400 watts
• Maximum absorption: 3000 watts
• Tank capacity: 2.12 U.S. gallons (8 liters)
• Booster capacity: 1.27 U.S. gallons (4.8 liters)
• Water consumption per cycle: 0.66 U.S gallons (2.5 liters)
• Water Inlet Connection: 3/4 in. flexible garden-hose type
• Working pressure: ~30 psi (dynamic)
• Weight: 116 lbs. (53 kg.)

• Body, external housing, wash tank, and all chassis components in brushed stainless steel AISI 304 18/10
• Noise 58 DbA due to utilization of sound-limiting panels
• Upper and lower wash and rinse jets on revolving arms constructed of fiberglass and easy to clean
• Integrated AISI 304 18/10 stainless steel booster with insulated lining
• Safety micro-switch on the door to interrupt wash pump action
  Independently-operated heating elements alternating between booster and wash tank
• Alternating heating resistors reducing maximum absorption thereby reducing energy costs
• Possibility of built-in or free-standing installation
• Standard equipment includes both sides and top panels that are easily removed

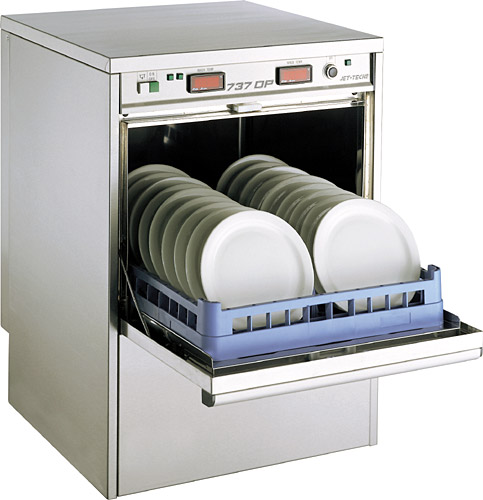

• Deep-drawn recessed washing cavity constructed without welds or corners makes the 737 ideally suited for Marine installations
  Wash tank protected with double filters with additional filter designed to hold the overflow pipe
• Door-opening with overall dimensions of 13.5 in. (34 cm)
• Upper removable integrated front control panel with easy access for technical maintenance
• Individual digital thermometer gauges displaying wash and rinse temperatures representing high-technology
• Overall dimensions: Height: 33.5 in. (850mm) Width: 23.75 in. (600mm) Depth: 23.75 in. (600mm)

Technical Features

• Dish rack capacity: 19.75 in. x 19.75 in. (500 mm. x 500 mm.)
• Complete cycle: 120 seconds (102 sec. wash & 18 sec. rinse)
• Single-phase electrical power supply 208-220 V. 60Hz. 22 AMPS
• Motor-pump 0.75 h.p. with clipson at 320F. (160C.)
• Wash tank element: 2800 Watts
• Booster element: 4000 Watts
• Maximum power rating: 4550 Watts
• Wash tank capacity: 3.17 U.S. gallons (12 liters)
• Booster capacity: 1.72 U.S. gallons (6.5 liters)
• Water consumption per cycle: 0.79 U.S. gallons (3 liters)
• Working pressure: 30 psi. (dynamic)
• Water Inlet Connection: 3/4 in. flexible garden-type hose
• Weight: 165 lbs. (75 kg.)
