American Hood Systems
avh23 Click here to View Cart Contents

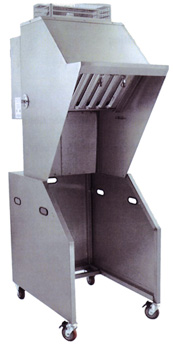

Ventless Cooking Exhaust System for use with Electric Fryers
Item # DVAHS-23 (AVH23)
Price: $6,999.00 with Free Shipping!


Free Shipping to commercial destinations in the contiguous USA
American Hood Ventless Exhaust System is Truly the Affordable and portable way to cook!

The compact and portable design of the ventless hood provides the perfect alternative when venting through a roof or wall is not feasible. Eliminates the need for expensive roof modifications and venting.

New, innovative triple - filter, updraft technology provides vapor removal requirements for a variety of food service applications and equipment.

Has a built in Ansul R-102 wet chemical fire suppression system. Charging and testing will need to be performed by an authorized Ansul Distributor.

Features:

  • Ventless Cooking Exhaust System for use with Electric Fryers
  • Contructed of 18 gauge Stainless Steel for durability and polished for aesthetic appeal.
  • Triple filter system designed to trap grease particles while removing smoke and reducing cooking odors.
  • Fully integrated Ansul R-102 wet chemical fire suppression system.
  • Interlocking start is a standard feature and does not allow the fryer or hood to operate separatly.
  • Caster incorporate swivel and locking front and non-swivel back for portability.
  • Base unit includes removable sides for east of cleaning.
  • Color-coded, lighted alert system included to insure system is running safely and efficiently.
  • Limited warranty of one year.
  • View Specifications (pdf)

UL certificationNSF certification


The Ventless Exhaust Hood system is approved for electric fryers with oil capacities of up to 85 pounds; not to exceed 470 square inches of kettle area.

Dimensions

Overall Height
Depth
Width
Shipping Weight
87.0 inches (2.2 m)
36.0 inches (91.5 cm)
26.5 inches (67.3 cm)
485 lbs

Electrical Specifications

The standard system will accommodate fryer widths up to 24 inches. Specialty sizes are available upon request.

208 V.AC / 60 amp Single or Three Phase Fuse at fryer's current rating.
240 V.AC / 90 amp
Free Shipping to commercial destinations in the contiguous USA


See More Ventless Cooking Equipment offered by Dvorson's »
