Vent-A-Hood Range Vents

Hood Index

Vent-A-Hood
The Finest Hoods Available for Under Cabinet, Wall Mount, or Island installations.

All Vent-A-Hoods Include: Switches, Transition, and Fluorescent or Halogen Lighting

Lighting Options: Optional at time of order only, Heat Lamp Bulbs not included

Halogen Lights and Warming Lamp Bar
Halogen Lighting and Warming Lamp Bar
Model PRH18-448H
Warming Light Bar
(WBAR model - see above)—available in most 18" tall and taller wall-mount hoods. Light bar housing is made of stainless steel in all hoods. Bulbs not included.
Not available in Island or Euro-style hoods.

Lighting Options:



Halogen Lights
(H models - see left)—standard in most models. 50-watt halogen lights come with a dual switch for dimming to 25 watts.
Bulbs are included.
For hoods 24" to 41" wide, two lights;
42" to 53" wide, three lights;
54" to 66" wide, four lights.
Each island hood has four halogen lights—two at each end.

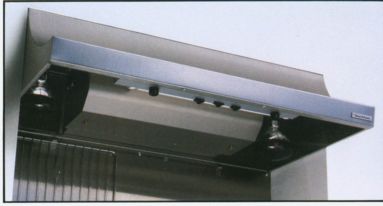

Halogen Lights and Warming Lamp HousingHalogen Lighting and Warming Lamps
Model NPH9-230H
Warming Light Housing
(WL-1 - see left)—available in most under-cabinet models. (9" H)
Light housing is made of stainless steel in all hoods. Bulbs not included.
Not available in Island or Euro-style hoods.

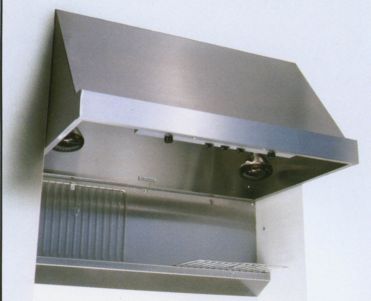

18" SlopeLine PWV18 Model With Warming Shelves & Heat Lamps
Heat Lamp Bulbs not included
18" Flairline Model DA18 With Warming Shelves & Heat Lamps

Heat Lamp Bulbs not included

30" H Island style designed to be installed at the 8' level.

SlopeLine Island Model PY18 with duct cover
SlopeLine Island
This angular pyramid shape blends well with many decors. Designed to mount at the 8' level or customize for taller ceilings or wider cooking equipment.

Vent-A-Hood's exclusive "MAGIC-LUNG" blower

The most powerful, efficient, quiet, and fire-safe kitchen system you can install in your home.





Vent-A-Hood Standard Finishes :

  • Stainless steel
  • Standard powder-coat smooth finishes almond, biscuit, satin black or white. Also available in special colors; ask for the Vent-A-Hood custom color chart.
  • Textured powder-coat finishes black river, copper vein, emerald vein, gold vein, silver vein, silvertone or white river.
  • Metal overlay real brass or real copper. Powder-coat interior standard. Stainless steel interior available upon request.

See the color chart for more details.

Warming Shelf Assembly

Warming shelves are a great addition to hoods equipped with warming lamps. The warming shelf assembly is the same width as the hood you choose and 15" tall. Includes two wire shelves standard, shelves are 10" tall by 14" wide.

Lighting Options:

Halogen lights
(H models - see right) standard in most models. 50-watt halogen lights come with a dual switch for dimming to 25 watts. Bulbs included. For hoods 24" to 41" wide, two lights; 42" to 53" wide, three lights; 54" to 66" wide, four lights. Each island hood has four halogen lights one in each corner.

Warming light bar
(WBAR model - see above) available in most 18" tall and taller wall-mount hoods. Light bar housing is made of stainless steel in all hoods. Bulbs not included. Not available in Island or Euro-style hoods.

Warming light housing (WL-1 - see left) available in most under-cabinet models. Light housing is made of stainless steel in all hoods. Bulbs not included. Not available in Island or Euro-style hoods.

Pot Racks

5/8" diameter brass or chrome rails add a beautiful effect on any style hood. Specify pot rail for front and/or sides on under cabinet and wall mount hoods. Specify pot rail for front and/or back, sides, or all around for island hoods.

Decorative Bands

Vertical bands (see right) 1"or 2" 18-gauge vertical bands. Bands are laminated to the hood and may not be attached with rivet caps or hex nuts.

1" or 2" 24-gauge vertical bands are also available; these bands are attached to hood with either rivet caps or hex nuts.

1/4" thick copper vertical bands. (See left) Only attached to hood using rivets.

Lip Treatment

a band of any of the enamel finishes or metals can also be attached to the front of the lip. 18 gauge lip treatment (see left) with full-lip coverage. Lip treatment is laminated to the hood, and may not be attached with rivet caps or hex nuts. May be used in conjunction with pot rail.

24-gauge lip treatment (see right) partially reveals the lip around the beveled edges. Attached to hood with either rivet caps or hex nuts. Cannot be used in conjunction with pot rail.
