Manitowoc Ice Machines

Up To 1,060 lbs Ice Daily
Up To 95 lbs Ice Daily

Up To 290 lbs Ice Daily

Up To 1,880 lbs Ice Daily

America's #1 Selling Ice Machines

Manitowoc Ice Machines

ARI Ice storage capacity 25 lbs. includes AR-2800 water filter, bin light, and delay start ice making. If gravity drain is not available a DRAIN PUMP can be purchased separately and installed inside the machine during installation. includes 6" power cord with NEMA 5-15P Plug

Model: SM-50A
Production: 53 lbs
Storage Capacity: 25 lbs
Dimensions (W x D x H): 14.75" x 23.5" x 34"
Condenser Type: Air-Cooled
Cube size: Standard Octagon
Weight: 114 lbs.
Price: Please Contact Us for Special Pricing on all Manitowoc Ice Equipment 1-877-386-7766

Option and Accessories:
K-00376 - Drain Pump
K-00374 - AR-2800 replaced filter sold in case of 12
000000084 - Cleaner in 16oz. bottle sold in case of 12
94-0565-3 - Sanitizer in 16oz. bottle sold in case of 12



Model
Production
Storage Capacity
Dimensions
Condenser
Price



W x D x H
Type

QM30A
65 lbs
30 lbs
19.69" x 22.34" x 36"
Front Air
1-877-386-7766
QM45A
95 lbs
30 lbs
19.69" x 22.34" x 36"
Front Air
1-877-386-7766


Ice Storage capacity 30 lbs. ARI storage capacity for bins is based on 80% of total volume in cu.ft. x 30 lb per Cubic Ft. average density of ice. Includes 6' power cord with NEMA 5-15P plug


Model
Production
Storage Capacity
Dimensions
Condenser
Price



W x D x H
Type

Q130
147 lbs
80 lbs
26" x 26.5" x 38.5"
Air Cooled
1-877-386-7766
Q210*
220 lbs
80 lbs
26" x 26.5" x 38.5"
Air Cooled
1-877-386-7766
Q270*
280 lbs
100 lbs
30" x 28" x 38.5"
Air Cooled
1-877-386-7766
Energy Star Certified
*Energy Star Qualified Model
Includes 6' power cord with NEMA 5-15P plug

Model
Production
Electrical
Dimensions
Condenser
Price



W x D x H
Type

S300
325 lbs
115/60/1
30" x 24.5" x 16.5"
Air Cooled
1-877-386-7766
S322
340 lbs
115/60/1
22" x 24.5" x 21.5"
Air Cooled
1-877-386-7766
S422
450 lbs
115/60/1
22" x 24.5" x 21.5"
Air Cooled
1-877-386-7766

208-230/60/1 also available. Bin Sold Separately


Half / Whole Dice
Model
Production
Electrical
Dimensions
Condenser
Price



W x D x H
Type

SD-0502A*
540 lbs
115/60/1
30" x 24.5" x 21.5 "
Air Cooled
1-877-386-7766
SD-0503W
540 lbs
115/60/1
30" x 24.5" x 21.5 "
Water Cooled
1-877-386-7766
SD-0592A*
540 lbs
115/60/1
30" x 24.5" x 21.5 "
Remote Air
1-877-386-7766


Half / Whole Dice
Model
Production
Electrical
Dimensions
Condenser
Price



W x D x H
Type

SD-0602A*
650 lbs
208-230/60/1
30" x 24.5" x 21.5 "
Air Cooled
1-877-386-7766
SD-0603W
650 lbs
208-230/60/1
30" x 24.5" x 21.5 "
Water Cooled
1-877-386-7766
SD-0692A*
650 lbs
208-230/60/1
30" x 24.5" x 21.5 "
Remote Air
1-877-386-7766


Half / Whole Dice
Model
Production
Electrical
Dimensions
Condenser
Price



W x D x H
Type

SD-0852A
870 lbs
208-230/60/1
30" x 24.5" x 26.5"
Air Cooled
1-877-386-7766
SD-0853W
870 lbs
208-230/60/1
30" x 24.5" x 26.5"
Water Cooled
1-877-386-7766
SD-0892N
870 lbs
208-230/60/1
30" x 24.5" x 26.5"
Remote Air
1-877-386-7766


Half / Whole Dice
Model
Production
Electrical
Dimensions
Condenser
Price



W x D x H
Type

SD-1002A
1060 lbs
208-230/60/1
30" x 24.5" x 26.5"
Air Cooled
1-877-386-7766
SD-1003W
1060 lbs
208-230/60/1
30" x 24.5" x 26.5"
Water Cooled
1-877-386-7766
SD-1092N
1060 lbs
208-230/60/1
30" x 24.5" x 26.5"
Remote Air
1-877-386-7766


Half / Whole Dice
Model
Production
Electrical
Dimensions
Condenser
Price



W x D x H
Type

SD-1202A
1060 lbs
208-230/60/1
30" x 24.5" x 29.5"
Air Cooled
1-877-386-7766
SD-1203W
1060 lbs
208-230/60/1
30" x 24.5" x 29.5"
Water Cooled
1-877-386-7766

Model
Production
Electrical
Dimensions
Condenser
Price



W x D x H
Type

S1400
1,450 lbs
208-230/60/1
48" x 24.5" x 26.5"
Air Cooled
1-877-386-7766
S1600
1,650 lbs
208-230/60/1
48" x 24.5" x 29.5"
Air Cooled
1-877-386-7766
S1800
1,840 lbs
208-230/60/1
48" x 24.5" x 29.5"
Air Cooled
1-877-386-7766

208-230/60/1 also available.
Bin Sold Separately
 Energy Star Certified
*Energy Star Qualified Model

Manitowoc Index Ice Cube Machines, Ice Flake Machines, Ice Storage Bins
From under counter, to auto dispensing, Manitowoc offers 17 commercial models with daily output from 45 lbs. (21 kg's.) to *1,880 (846 kg's.) pounds.

Storage Bins

The Manitowoc line of commercial ice cube machines includes three styles of ice storage bins.

Manitowoc’s B-Style ice storage bins for S-Series ice machines are constructed of durable and corrosion-resistant stainless steel corrosion-free composite resin base, rugged polyethylene bin liner, stay-open bin door and internal scoop holder. Soft durometer trim around opening helps silence bin door closing. B-Style bins are available in widths of 22”, 30” and 48”.

The B-Style Large Capacity ice storage bin is equipped with an ice gate for increased employee safety, easier ice removal, and reduced spillage.
B-Style Large Capacity bins are available in widths of 30”, 48”, and 60”.

C-Style Bins
Model
ARI / Lbs. Capacity
Cu. Ft. Capacity
Ship Wt. Lbs.
Size
Price
C-730S
560
23.3
155
42"w x 31.5"d x 46"h
1-877-386-7766
Includes: 6" nickel plated legs & adapter (K-00023) to 30" ice machine

B-570 Ice Storage Bin

B-Style Ice Storage Bins

Highly styled design offers perfect fit and finish with the S-Series ice machine.

  • Stainless steel exterior construction for long term durability
  • One piece durable easy to clean seamless rotocast bin liner
  • Stainless steel adjustable legs are standard
  • Patented hold-open hinged door design
  • Soft durometer trim offers silent closing and easy cleaning
  • Insulated door maximizes ice storage temperature
  • Internal built in scoop holder for easy access and improved sanitation

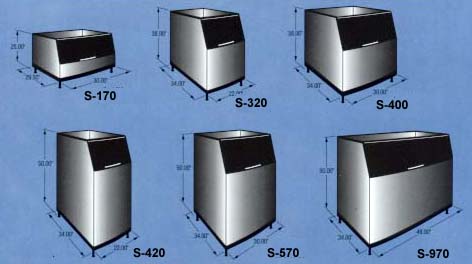

B-Style Bins

Fits S-Series Ice Cube Machine Indicated [x]
Bin Model Capacity

A

B C D E F G Dimensions
lbs. kgs. Height Width Depth
in. cm in. cm in. cm Price
B-170 150 68 3 x       3   25 63.50 30 76.20 29.5 74.92 Call us

B-320

210 95 x         x x 38 96.52 22 55.88 34 86.36 Call us
B-400 290 132 3 x x   x 3   38 96.52 30 76.20 34 86.36 Call us
B-420 310 141 x         x x 50 127 22 55.88 34 86.36 Call us
B-570 430 195 3 x x   x 3   50 127 30 76.20 34 86.36 Call us
B-970 710 323   1 2 x 4     50 127 48 121.92 34 86.36 Call us

A - S322, S422
B - S300, S450, S500
C - S600, S850, S1000, S1200
D - S1400, S1600, S1800
E - S1470C, S1870C, S2170C
F - SF400
G - SN450

1 - K-00369 adapter required
2 - K-00370 adapter required
3 - K-00368 adapter required
4 - K-00385 adapter required


Large Capacity Ice Storage Bins

Manitowoc B-Style large capacity ice storage bins are equipped with an ice gate for increased employee safety, easier ice removal, and reduced spillage.

  • Ice Gate
    • Controls ice flow into snout for easy removal with either scoop or shovel
    • Returns easily to full down position Durable Polyethylene Lift Door
    • Bin door can be held open with a safety latch
    • Eliminates sharp corners and gaskets
    • Provides outstanding durability
    • Offers maximum access for fast, easy ice removal
  • Quality Construction
    • Heavy-duty welded construction
    • Non-CFC foamed-in-place insulation
    • Sliding doors provide instant inspection of bin
    • Warranty
      • Limited lifetime warranty on bin liner, base, and poly snout.
      • 3-year parts-and-labor warranty on remainder of bin.
B-1400 Ice Storage Bin

B-Style Large Capacity Bins

Fits S-Series Ice Cube Machine Indicated [x]
Bin Model Capacity A B C Dimensions
lbs. kgs. Height Width Depth
in. cm in. cm in. cm Price
B-750 748 339  x     57 144.8 30 76.20 34 86.36 Call us
B-1100-30 1,114 505  x    x 56 142.3 48 121.92 34 86.36 Call us
B-1100-48 1,114 505  x x   56 142.3 48 121.92 34 86.36 Call us
B-1400-30 1,416 642  x    x 56 142.3 60 152.40 34 86.36 Call us
B-1400-48 1,416 642 x x   56 142.3 60 152.40 34 86.36 Call us

Ice Flake / Chiplet Machines 400 Series Self contained

Model

Price
QF400
Self contained 395 lbs. production / 60 lbs. storage / 115 volt
Please Call us
SF400
Self contained 428 lbs. production / Not stackable, Not AuCS compatible / 115 volt
Please Call us

QF-400 Series Flake Ice Machine

  • Air-cooled flake ice machine with classic Q-Series modular design
  • Cabinet is 26" wide x 26.5"deep x 38.5" high * (66.04 cm x 48.26 cm x 97.8 cm)
  • Up to 395 lbs ( 179 kg's.) daily flake ice production
  • Produces irregular pieces of flake ice with a soft degree of hardness.
  • Evaporator drain valve makes unit easier to clean; improves sanitation; and requires less maintenance
  • Split collar evaporator support and aligned draft coupling improves water seal and bearing reliability
  • Rugged, corrosion-free base
  • Patented cleaning and sanitizing technology
  • 115/60/1 electrical is standard
  • R-404A CFC-free refrigerant
  • Patented cleaning and sanitizing technology
  • Two-year parts and labor warranty. Five-year warranty on compressor parts.
  • Shipping Weight: 183 lbs.

SF-400 Series Flake Ice Machine
SF-400 Flake Ice Machine on B-420 Bin

SF-400 Flake Ice Machine on B-420 bin. Both items sold separately. Other combinations are available.

Ice Machine and Bin
Ice Machine and Bin
SF-400 Ice Machine
SF-400 Ice Machine
B-420 Storage Bin

Narrow modular flake ice machine produces an ideal granular ice for maximum cooling and display uses.

  • Up to 428 lbs. (194 kgs.) daily ice production
  • Only 22" (55.88 cm) wide
  • Flake ice is small hard bits of ice ideally suited for any “contact” presentation. It forms completely around the contact item and cools quickly
  • Manitowoc’s patented cleaning technology manages the cleaning process from start to finish
  • Evaporator is designed for maximum quality and operating life
  • Shipping Weight 180 lbs.
  • Warranty
    • 2-year parts and labor coverage on all components.
    • Additional 3-year (5-year total) parts coverage on ice machine compressor

Manitowoc offers floor standing ice dispensers for the lodging industry with pushbutton, coin, or room card ice dispense activator. A self-serve dispenser for food service markets features separate pushbutton activation for ice and water. Floor standing dispensers have 180 pounds of ice storage capacity and accommodate Manitowoc series 200, 450, or 600 pound per day ice machines.
Countertop ice and ice and beverage dispensers with automatic or manual-fill ice capability are also available.

Manitowoc offers the world's only ice-making machines with Self-Cleaning systems. This patented feature eliminates the downtime and labor cost associated with periodic cleaning.
Manitowoc's ice making accessories include NSF certified water filters, ice baggers and automatically activated self-cleaning systems.

AUTOMATIC CLEANING SYSTEM
(AuCS) Eliminates routine maintenance. AuCS counts the number of cycles and at a frequency you select, initiates a self-cleaning cycle... AUTOMATICALLY. Choose from 2-week, 4-week, or 12-week settings.

210 specs
