CTSG365D shown with WPN36SH Pinnacle series
hood & warming shelf. Please Contact us for advisement on Ventilation Hood Solutions for your Professional Cooktop Range or Stove 1-877-386-7766
- 30" or 36" x 19 1/2" x 2-3/4"
- 304 Stainless steel top and frame
- Sealed burners- Burners are sealed in the top for easy cleaning.
- 2 3/4" o.a. box depth allows for more space utilization
in the cabinets directly below the cooktop
- Low profile design provide stability for large pots.
- Full coverage burner grates allow pots to slide easily over
the entire cooking surface.
- 110 volt for electronic ignition
- One year warranty
|
 |
|
Gas Model # |
Size |
Description |
** |
|
30" |
5 Burner
65,000 BTU's Total
|
1-877-386-7766
Natural Gas or LP model |

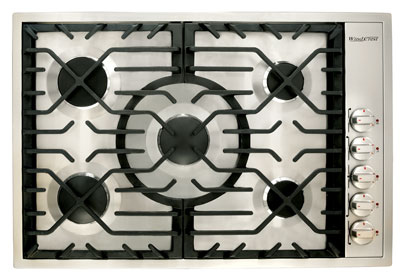

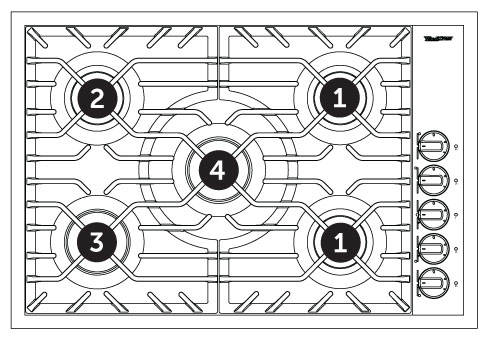

 BTU output per burner for CTSG305DS:
1: 9,000 BTU Single Port Burner 2: 12,000 BTU Single Port Burner
3: 140°F to 15,000 BTU Dual Port Culinary™ Burner 4: 140°F to 20,000 BTU Dual Port Culinary™ Burner |
|

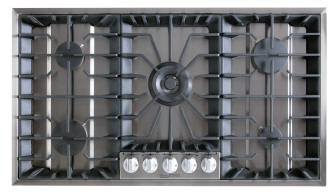

36" |
5 Burner
71,000 BTU's Total
|
Natural Gas or LP model
|
 BTU output per burner for CTS365DS:
1: 9,000 BTU Single Port Burner 2: 12,000 BTU Single Port Burner
3: 140°F to 15,000 BTU Dual Port Culinary™ Burner 4: 140°F to 20,000 BTU Dual Port Culinary™ Burner
|
View Installation Instructions for Gas Cooktops (PDF)
Care and Use Manual (PDF)

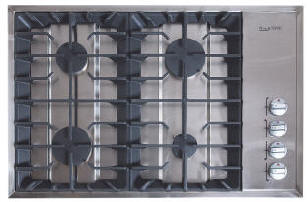

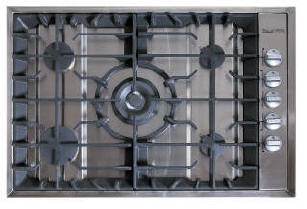

Gas Model Features
- One piece 9 gauge Heavy Duty 300 series surgical grade stainless
steel top
- Up to six sealed gas burner plus unique electric simmer burner
- Wide range of gas burners give full flexibility to handle all
special cooking needs
- 48" unit has 4 12,500, 1 9,000 and 1 7,000 BTU/hr burners
- 36" unit has 4 12,500, 1 9,000 and 1 7,000 BTU/hr burners
- Plus electric simmer/warmer element with 30-300 watt range 102-1023
BTU/hr equivalent
- All gas burners are sealed and have auto reignition
- Uses regular 15-amp electric circuit
- Available with Natural Gas or LP Propane Gas Fuel Type
- Full One Year Warranty
- View Installation Instructions for Gas Cooktops (PDF)
WindCrest stainless steel cooktops feature sealed burners, auto electronic ignition, and a burner box depth of only 2-3/4".
*NOTE: No special 240-volt hookup required for Gas cooktops
|
|
Windcrest© CTI304D Induction 30" Cooktop Range with 4 Cooking Zones
Black textured Ceramic Glass with matching rear metal frame
1-877-386-7766
Specifications | Install Specifications | User Manual | Frequently Asked Questions
- Low-profile, ceramic glass with matching rear frame.
- Textured glass surface helps minimize fingerprints and protects the glass finish.
-
30” Model (CTI304D) features Four (4) cooking zones. Total cooktop power of 7,200 watts.
- Precise, touch-sensitive electronic controls with 11 power settings (includes 3 pre-set options)
- Full range of power on all zones. NO power sharing or cycling between zones.
- AutoPanSizing™ feature senses pan size and matches heat transfer to the pan – no residual heat loss*
- Most energy efficient cooking method which equates to lower energy costs and cooler kitchens.
- AutoOff™ feature that will turn the cooking surface off within 30 seconds, if pan is removed, or it senses a non-conductive pan is present.
- Cool to-the-touch cooking surface – safest cooking method to use around children.
- Shallowest rough-in box depth in the industry – maximizes cabinet storage.
- All Wind Crest products are UL and CUL listed
- Black textured Ceramic Glass with matching rear metal frame
|
|
Windcrest© CTI365D Induction 36" Cooktop Range with 5 Cooking Zones
Black textured Ceramic Glass with matching rear metal frame
1-877-386-7766
Specifications | Install Specifications | User Manual | Frequently Asked Questions
- Low-profile, ceramic glass, with matching rear frame.
Textured glass surface helps minimize fingerprints and protects the glass finish.
-
36” Model (CTI365D) features Five (5) cooking zones. Total cooktop power of 10,800 watts.
-
Precise, touch-sensitive electronic controls with 11 power settings (includes 3 pre-set options)
-
Full range of power on all zones. NO power sharing or cycling between zones.
-
AutoPanSizing™ feature senses pan size and matches heat transfer to the pan – no residual heat loss*
-
Most energy efficient cooking method which equates to lower energy costs and cooler kitchens.
-
AutoOff™ feature that will turn the cooking surface off within 30 seconds, if pan is removed, or it senses a non-conductive pan is present.
-
Cool to-the-touch cooking surface – safest cooking method to use around children.
-
Shallowest rough-in box depth in the industry – maximizes cabinet storage.
-
All Wind Crest products are UL and CUL listed
- Black textured Ceramic Glass with matching rear frame
|
|
|

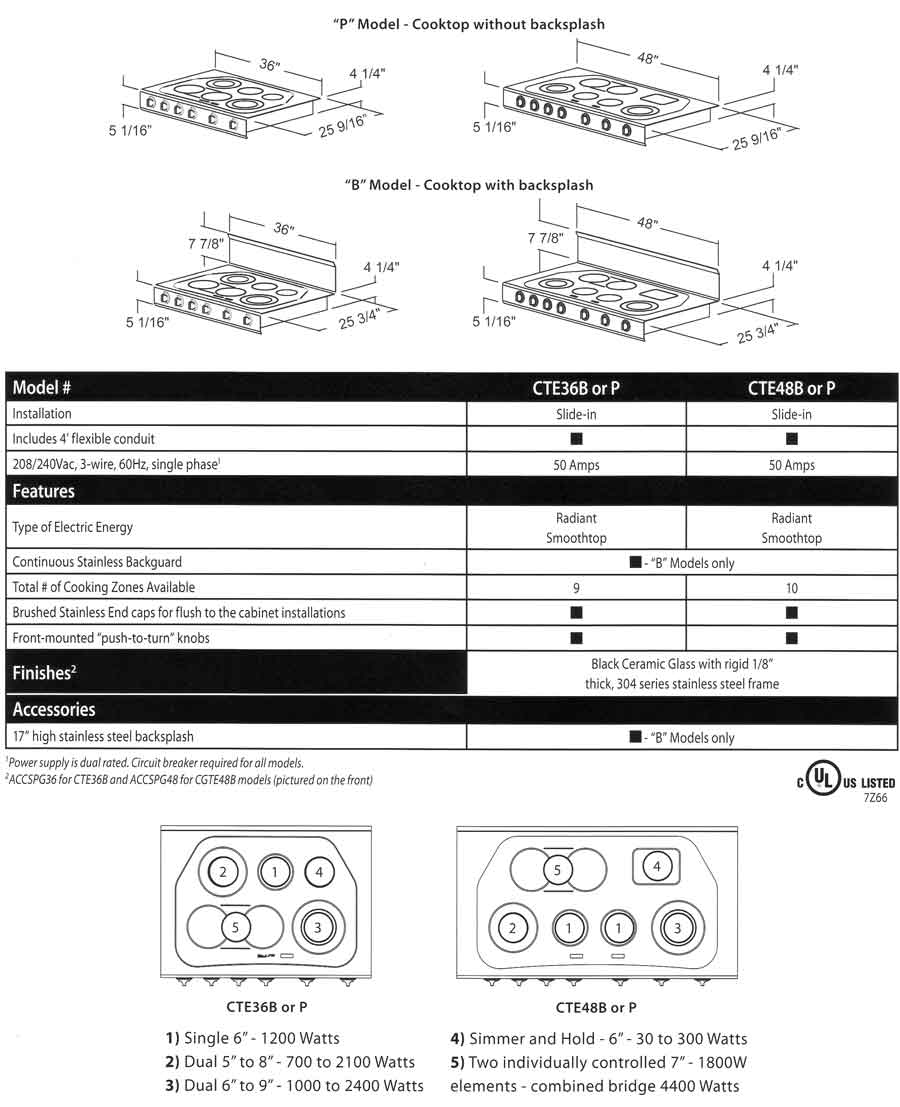

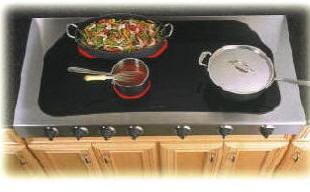

Electric Model Features
- One piece 9 gauge
- Heavy Duty 300 series surgical grade stainless steel top
- Radiant Rapid Start Ribbon heating elements, sealed under a glass
ceramic surface
- Wide range of heating elements allows a selection of uses from
Keep Warm to Rapid Boil
- 36" unit has 9 ribbon elements, with combinations ranging from 300-4400
watts
- Simmer/warmer element controlled to give heating range from 30-300
watts 102-1023 BTU/hr equivalent
- Versatile Bridge Burner combines 2 round burners to create large
practical cooking area
- All elements regulated with infinite controls
- Sleek, uncluttered cooking surface with front mounted controls
- the largest ceramic surface with working area in the industry
- Full One Year Warranty
- View Installation Instruction for Electric Cooktops (PDF)
|
|
Dual
Element:
