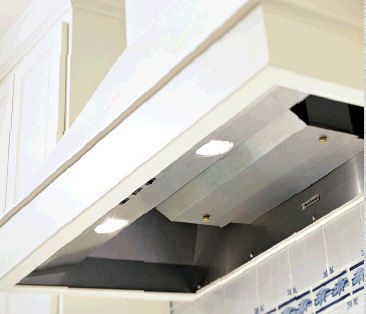

Your Decorative Hood and Liner Must Fit At The Bottom Edge. You can shape the outside of your decorative hood in any way you wish, but the ONLY place where the liner and the outside cover must meet and fit is at the BOTTOM edge of the metal liner in both width and depth. Some dimensions of the liner, such as height and top dimensions, can be smaller than the "shell" of the decorative hood (see dotted lines in the drawings).

Standard Wall Mounted Metal Liners - Models BSLD, BPSLD

Contact us for pricing

BSLD

Mounts 24" - 27" above cooking surface
Depth 19 1/4"
Height 12"
Top Depth 12"
Top Width = 6" less than bottom width
Stainless Steel or Standard Powder Coat Finishes
Halogen or Fluorescent Lighting
Single or Dual Blower

BPSLD

Mounts 27" - 30" above cooking surface
Depth 22 1/2"
Top Depth 12"
Top Width = 6" less than bottom width
Lip 3"
Stainless Steel or Standard Powder Coat Finishes
Halogen or Fluorescent Lighting

BSLD - Stainless Steel - Single Blower

Bottom Width	Fluorescent Lighting	Halogen Lighting
28 3/8"
34 3/8"
40 3/8"

Contact us for pricing on colors.

BPSLD - Stainless Steel - Dual Blower

Bottom Width	Fluorescent Lighting	Halogen Lighting
28 3/8"
34 3/8"
40 3/8"
46 3/8"
52 3/8"

BSLD - Dual Blower, Stainless Steel

Bottom Width	Fluorescent Lighting	Halogen Lighting
28 3/8"
34 3/8"
40 3/8"

Contact us for pricing on colors.

Bottom Width - Three Blowers

46 3/8"
52 3/8"
58 3/8

Contact us for pricing

Bottom Width - Four Blowers - Two sets of two

52 3/8"
58 3/8"
64 3/8"

Contact us for pricing

Custom Hood Liners for Wall or Island Hoods from Vent-A-Hood ( Special order only )

How to Measure Your Custom Decorative Hood For a Liner.

If your decorative hood is NOT ALREADY BUILT, choose a standard liner and build your hood to fit.

Vent-A-Hood can build a liner for an existing decorative hood provided Vent-A-Hood receives ACCURATE INTERIOR DIMENSIONS!

Use one of the drawings to assist you in your measurements. (Wood hoods are rarely square. Always measure inside depth and width dimensions in multiple locations and use the smallest dimensions.)

Bottom Depth and Bottom Width of the liner must meet and fit with bottom interior of the decorative hood (see drawings 1 & 2). The liner must cover all burners for maximum efficiency.

Always use interior measurements of the decorative hood.

Provide Vent-A-Hood accurate interior dimensions and we will allow a 1/8" clearance on the width and depth (unless you specify exact dimensions).

Height of the liner does not have to be the same as the height of the decorative hood, and is generally shorter (see drawing below). 12" is the optimal liner height, but 18" is required if you want a warming bar. 9" is the minimum height for a liner.

Top depth (projection at top of liner) must be less than the interior depth of the hood (standard top depth is 12"). You must measure the interior depth of your hood at the top height of the liner to make sure the liner will fit all the way inside the hood (see drawing 3).

Standard lip height is 3". If you desire, you may ship your wood hood to our factory and let us take care of it for you. We measure, build and install the liner, then ship it back to you. Contact your distributor for shipping instructions.
