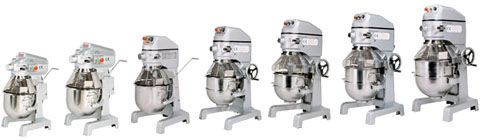

Globe Planetary Mixer Series (Formerly Spar Mixers)


Globe's heat-treated hardened alloy gears are precision milled for increased durability and strength. The custom built motors and high torque transmission ensures peak performance when mixing the thickest dough. Features include long lasting gear lubrication, rigid cast steel base and column, three fixed speeds, front mounted controls, thermal overload protection, and two year parts/one year labor warranty. Standard equipment includes a stainless steel bowl, spiral dough hook, flat beater, stainless steel wire whip, stainless steel bowl guard with built in ingredient chute, 15 minute timer and #12 attachment hub.

Standard equipment includes a high quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy hand lever, or crank on the body column raises and lowers the bowl.

All models have 15 minute timer:
Model
Description
Horse Power
Electrical
Ship Wt.
 Specifications
Special
SP8
8 QT.
1/4 hp. 115 volt 5 amp
62 lbs
 PDF
$1,128.00
SP10
10 QT.
1/3 hp. 115 volt 8 amp
255 lbs
 PDF
$2,044.00
SP20
20 QT.
1/2 hp. 115 volt 10 amp
295 lbs
 PDF
$2,264.00
SP25
24 QT.
3/4 hp. 115 volt 11 amp
325 lbs
 PDF
$2,904.00
SP30
30 QT.
1 hp. 115 volt 15 amp
550 lbs
 PDF
$3,751.00
SP30P
30 QT. Pizza Mixer
 1 1/2 hp. 220 volt 12 amp
550 lbs
 PDF
$4,532.00
SP-40P
40 QT. Pizza Mixer
 2 hp. 220 volt 17 amp 1ph/3ph
720 lbs
 PDF
$6,318.00
SP-60P
60 QT. Pizza Mixer
 3 hp. 220 volt 18 amp 1ph/3ph
770 lbs
 PDF
$8,531.00
SP80PL
80 Qt.
3 hp. 208 volt 60 hz 3 ph, 12 amp
1,215 lbs
PDF
$11,978.00
Call us for an attractive freight quote

Contact us for accessories:

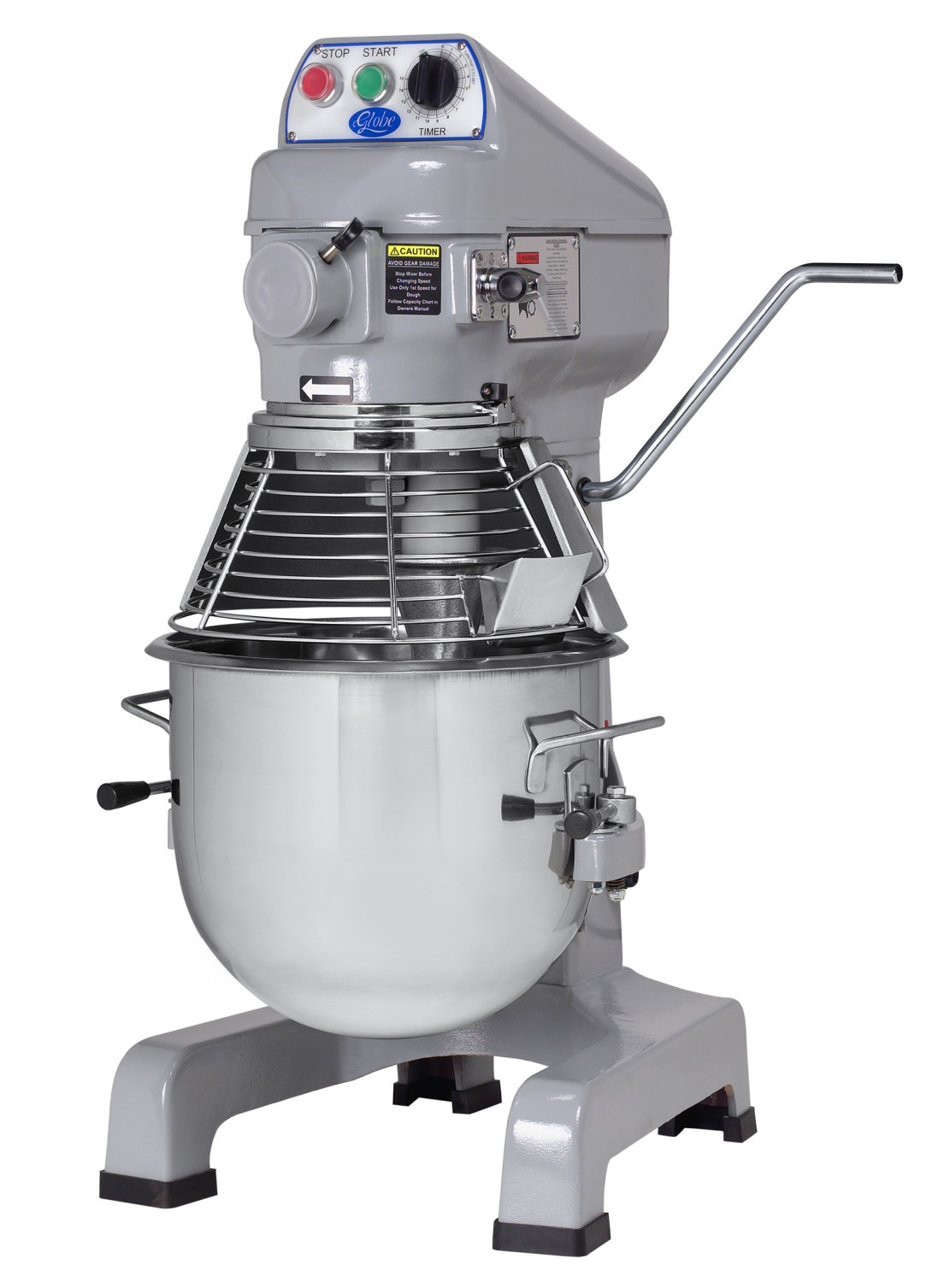

SP-20

Carton Size: Depth 24in.(60cm) Width 23in.(58cm) Height 37.8in.(96cm)
Cartons are affixed to an undersized skid (pallet), the weight and diminsions of this skid are not included above and may vary from shipment to shipment.

Motor: 1/2 h.p., grease packed ball bearing, air-cooled, 110/60/1 (50Hz available)
Controls: The following controls are standard on all Spar Mixers: separate start and emergency stop buttons so operators can shut down the mixer immediately in an emergency situation, and thermal overload protection
Cord and Plug: 6 ft. flexible three wire cord and ground prong.
Transmission: Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by direct linkage to the motor drive shaft. This design yields high-torque mixing power.

  • Speeds: (Agitator rpm), (Hub RPM)
  • 1. Low Speed 106, 59
  • 2. Intermediate Speed 196, 110
  • 3. High Speed 358, 201

Bowls and Agitators:
Standard equipment includes a 20 Qt. high quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy hand lever on the body column raises and lowers the bowl as well as locking in place at the top and bottom positions.

Attachments: Standard is the No. 12 hub for powering a standard size vegetable slicer/cheese shredder and a standard size meat mincer/grinder.

Finish: Top (transmission cover): metallic bronze epoxy enamel
Bottom: metallic gray epoxy enamel
Shipping Information:
N.W.       176lbs       (80kgs)
G.W.       220lbs       (100kgs)

Other Mixers at Dvorson's: Berkel Mixers , Axis, Doyon, Dynamic (handheld), Varimixer, KitchenAid
