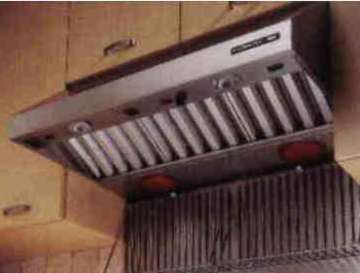

Broan Rangemaster Hoods -High performance hoods with the professional look you want.

64000 Series This versatile 10" hood fits seamlessly into any cabinet as a replacement hood or in a new installation.

Optional restaurant quality stainless steel back splash with fold-down shelves.

Optional baffle filters complete the professional look.Vent

Optional baffle filters

For 64000 Series 10"
Model
Size
Wt.
Price
RBF30
30"
11
Call for Prices
RBF36
36"
12
RBF42
42"
14
RBF48
48"
18



For 60000 Series 18"
Model
Size
Wt.
Price
RBF6030
30"
7
Call for Prices
RBF6036
36"
8
RBF6042
42"
10
RBF6048
48"
11
RBF6054
54"
12
RBF6060
60"
14
RBF6072
72"
18

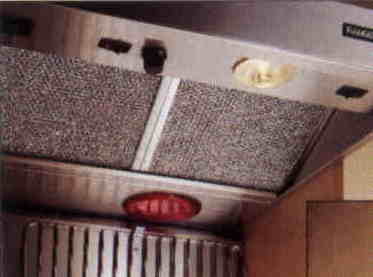

Range Vent
Dishwasher safe grease filters
Secs

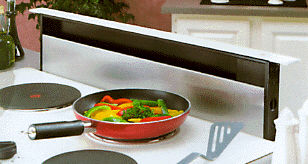

Eclipse 27000 Series Down Draft 30" or 36"

Eclipse 27000 Series Down Draft Systems
500 CFM Call for Price

An innovative downdraft system compatible with virtually all self-contained cooktops. Sleek, trim styling complements any cooktop style or color. Automatically raises into position with the touch of a button. Disappears flush with cooktop surface. Space-saving design lets you make the most of precious, under-counter cabinet space. Infinitely adjustable speed control is flush with the side of the unit; inconspicuous, yet easy to reach and simple to use. Blower discharges right, left or down and slides side-to-side to ease installation.
Model 273003

  • 30" or 36" models (designed to fit all standard kitchen cabinets).
  • Choice of two HVI Certified blower options to suit your performance preferences.
  • Choose interior models for an integrated solution or an exterior model for the quietest operation.
  • 500 CFM Interior Blower (Model 27000).
  • 900 CFM Exterior Blower (Model 28000 with 332H Exterior Blower).
  • Stainless Steel cover standard. White or Black optional.
RMDD Series
30", 36", or 48" 500 CFM


64000 Series Hoods:

  • Available in 30", 36", 42", or 48" x 10" x 21"
  • Available in Stainless Steel, White, or Black
  • Exclusive Heat Sentry automatically turns blower to high speed when excess heat is detected
  • Dishwasher safe grease filters
  • No overhang of hood to cooking equipment required
  • Optional restaurant quality stainless steel back splash with fold-down shelves
  • Optional baffle filters complete the professional look

Venting:

  • Interior blowers 500-CFM or 850-CFM
  • Exterior blowers 600-CFM, 900-CFM, 1200-CFM or 1500-CFM
  • Horizontal or vertical exhausting
  • May use in overhead cabinets
  • Two infrared food warning lamps "hold" one dish while you finish preparing others (lamps not included)
  • Two 50-watt halogen lamps for cook top lighting (lamps not included)
  • Solid state speed control remembers the last blower setting
64000 Series Stainless Steel Hoods: Specifications White or Black Are Available
Model
Measurements

Recommended Blowers

Price
30"
30" W x 21 D x 10 H
P5, 331, 332
Call for Prices
36"
36" W x 21 D x 10 H
P5, P8, 331, 332, 335,336
42"
42" W x 21 D x 10 H
P5, P8, 331, 332, 335,336
48"
48" W x 21 D x 10 H
P8, 331, 332, 335,336

Blower Information
Model
Mounting
Volts/Hz
Amps
Duct Size
at Discharge
CFM
Price
P5
Interior
120/60
7.0
3 1/4" x 10"
500
Call for Prices
P8
Interior
120/60
9.0
3 1/4" x 10"
850
331H
Exterior
120/60
5.3
10" Rd.
600
332H
Exterior
120/60
8.8
10" Rd.
900
335
Exterior
120/60
3.0
10" Rd.
1200
336
Exterior
120/60
3.8
10" Rd.
1500
332KR Rough in Kit for models 331 & 332
Call for Price

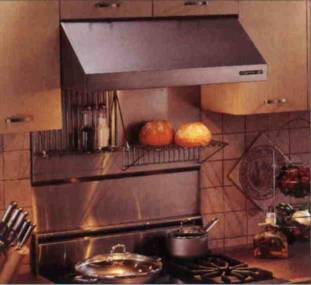

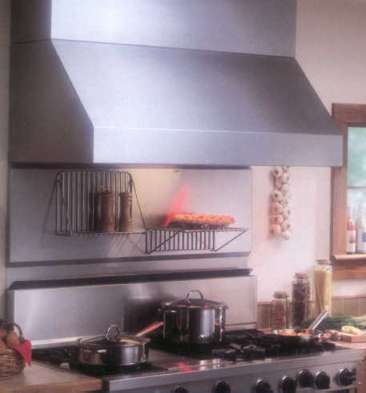

60000 Serieshood with optional backsplash & folding shelves

Hood with Warming Lamps option: Shown with Stainless Backsplash, and fold down wire shelves

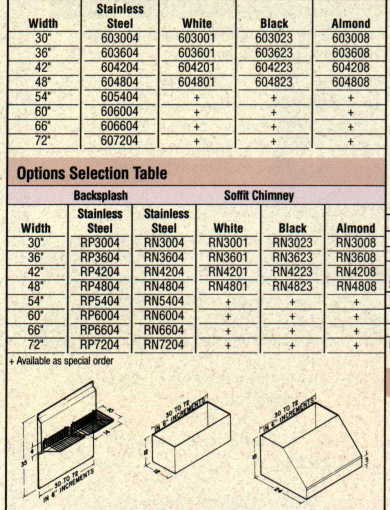

60000 Series Stainless Steel Hoods: White or Black Are Available
Model
Measurements

Recommended Blowers

Price
RM603004
30" W x 24 D x 18 H
P5, 331, 332
Call for Prices
RM603604
36" W x 24 D x 18 H
P5, P8, 331, 332, 335,336
RM604204
42" W x 24 D x 18 H
P5, P8, 331, 332, 335,336
RM604804
48" W x 24 D x 18 H
P8, 331, 332, 335,336
RM654604
54" W x 24 D x 18 H
P5, P8, 331, 332, 335,336
RM606004
60" W x 24 D x 18 H
P5, P8, 331, 332, 335,336
RM607204
72" W x 24 D x 18 H
P8, 331, 332, 335,336

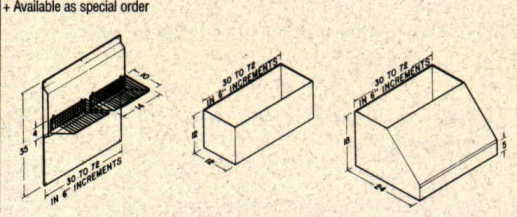

18" h x 24" d x 30-72" w
optional backsplash & folding shelves
More Broan Range Hoods: Contact us for pricing please.

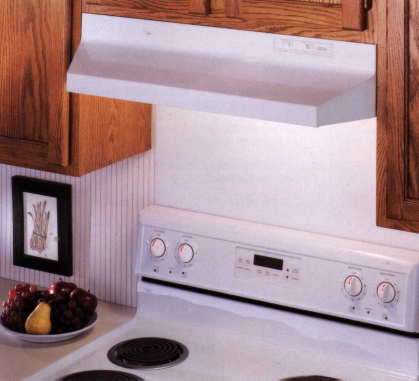

40000/42000 w/ backsplash

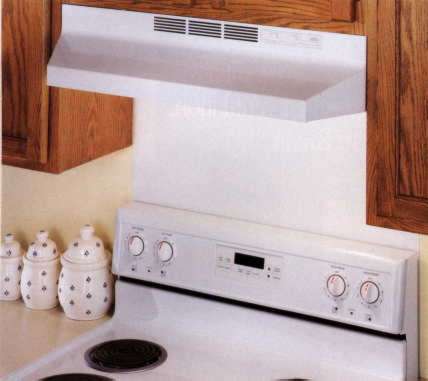

41000 w/ backsplash

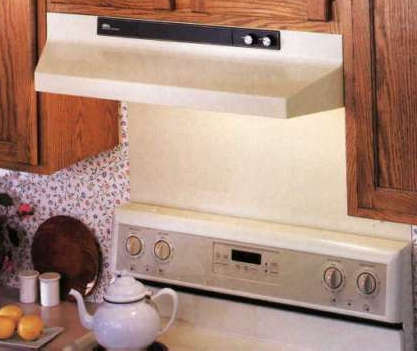

46000 w/ backsplash

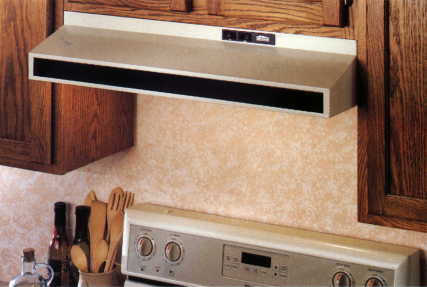

48000 Series

68000 Series Discontinued

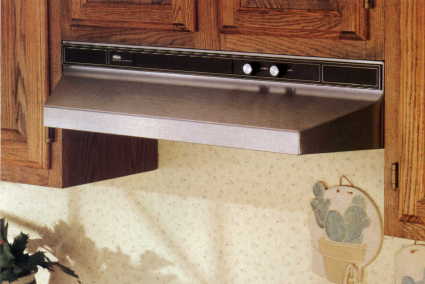

75000 Series

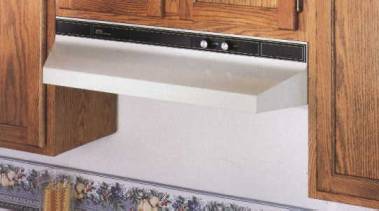

76000 Series

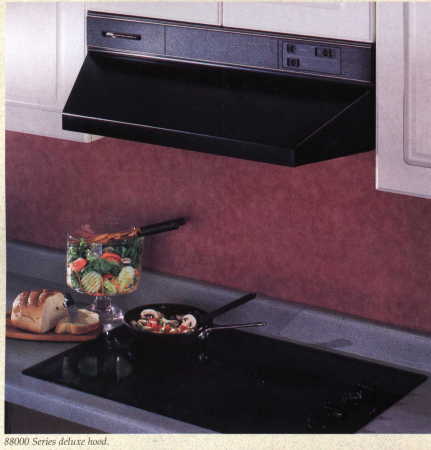

88000 Series

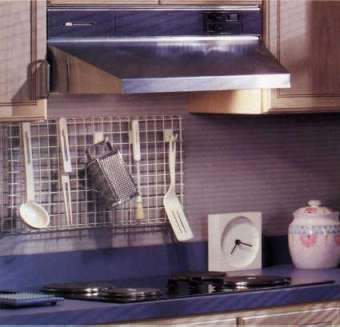

89000 Series

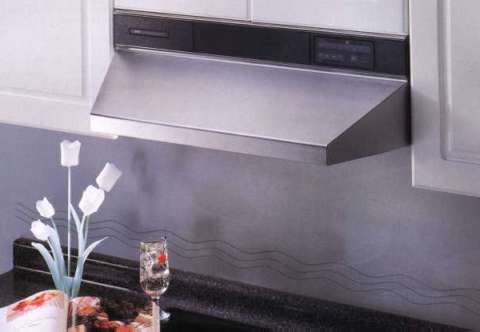

90000 Series

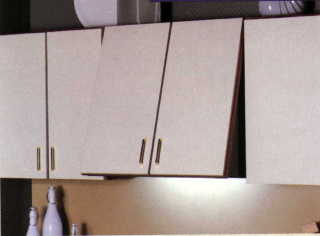

Hideaway

Discontinued, Sorry
Micromate- Hood / Microwave storage unit

Silhouette Slide Out

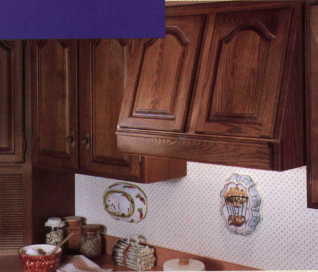

Wood Hood


Exterior Blowers for wall & roof remote applications.

Broan

Reduce kitchen noise by locating range hood blowers outdoors.
Designed for use with our professional style Hoods including: Sleek
Rangemaster® RM60000 and 64000 series (332KR rough-in kit required), EX Series chimney hoods and RMP power packs.
Great for custom hoods, use the infinite speed control for remote control of exterior blowers. 57V ivory, or 57Wwhite
Residential design fits unobtrusively on home exterior.
Durable, weather-resistant, all-aluminum construction that is designed to mount on the roof or outside wall.
Safety screen keeps small animals and debris away from blower and motor.
HVI Certified.

Infinite speed control for remote control of exterior blowers.

57V ivory, or 57W white $39.00

Model
(uses 10" round duct)
Size
CFM
Special
335
335
29 1/2" x h 18" w x 7 1/4" d
1200
Call for price
336
29 1/2" x h 25" w x 7 1/4" d
1500
Call for price


Wind Crest

Model
Type Blower
CFM
Duct Size
AMPS
Special
VEN100E
EXTERNAL - WALL OR ROOF
1000
10"
7.3
Call for price
VEN140E
EXTERNAL - WALL OR ROOF
1500
10"
7.5
Call for price



Remote Ventilator (uses 10" round duct), -Switch Required
