Wall Mount, European Style RA-094 (36")
Item # RA9436SQB (36")
$1,010.00 with Free Shipping
| QuietMode™ |
At 280 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 42 decibels (1.2 sone). |
| Powerful Twin Motors |
QuietMode™
Low Speed
Medium Speed
High Speed |
280 cfm (1.2 sones)
420 cfm (2.0 sones)
580 cfm (2.8 sones)
760 cfm (4.5 sones) |
|
| Exhaust Duct |
6" Round Exhaust Duct |
| Attractive Appearance |
The seamless curves and stylish appearance of the hood will compliment any kitchen. |
| Time Delay Controls |
The Time Delay System features a 30-second delay shutoff (1 push On/Off) or immediately shutdown (2 push On/Off). |
| Four Speed Controls |
This model has a four-button control panel - Light button, Speed button (cycles through Low, Medium, High, & QuietMode™), alternate Speed button (cycles through Low, QuietMode™, High, & Medium) and On/Off button. |
| Bright Halogen Light |
Two bright 12-volt 20-watt halogen lights. |
| Filter Option |
Baffle filters |
| Easy to Clean |
KOBE's unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood. |
| Quality |
Parts are checked for defects and designed for trouble free long term use. |
| Easy to Install |
Our special design makes installation fast and easy. |
| Size |
36" (Also available in 30" Size) |
| Color |
18-Gauge Commercial Grade Stainless Steel - Satin Finish |
| Optional Accessories |
Extension Duct Cover:
Model No. RA0946DC
Stainless Steel Back Splash:
36" Stainless Steel Back Splash - Model No. SSP36 |
|
|
View Full Specifications |
 |
| View Installation Manual |
|
|
|
|
|

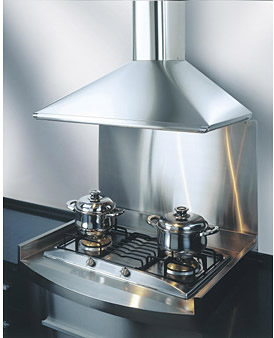

Wall Mount, European Style CH-181 Series (36")
Item # CH8136SQB(36")
$970.00 with Free Shipping
| QuietMode™ |
At 250 cfm, this unique feature allows the KOBE range hood to operate at a reduced sound level of just 38 decibels (1 sone). |
| Powerful Twin Motors |
| QuietMode™ |
250 cfm(1.0 sone) |
| Low Speed |
450 cfm(2.8 sone) |
| High Speed |
600 cfm(4.5 sone) |
|
| Exhaust |
6" and 7" Round Adapter. |
| Attractive Appearance |
The trim profile and clean lines allow the hood to be installed over any cooking system. |
| Three Speed Control |
CH8136SQB is equipped with slide control for easy operation. |
| Bright Halogen Light |
Two bright 12V 20W halogen lights. |
| Easy to Clean |
KOBE's unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood. |
| Filter Type |
Two Baffle filters. Dishwasher safe. |
| Quality |
Parts are checked for defects and designed for trouble free long term use. |
| Easy to Install |
Our special design makes installation fast and easy. |
| Size |
36" |
| Color |
20-Gauge Commercial Grade Stainless Steel - Satin Finish |
| Optional Accessories |
Duct Cover::(Included with hood)
Model No. CH81SDC
Steel Rack:
Model No.CH81SR
Stainless Steel Back Splash:
36" Stainless Steel Back Splash - Model No. SSP36 |
|
| View Full Specifications |
|
| View Installation Manual |
|
|
|
| |
|
|
|
Wall Mount, European Style RA-094 (30")
Item # RA9430SQB (30")
$940.00 with Free Shipping
| QuietMode™ |
At 280 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 42 decibels (1.2 sone). |
| Powerful Twin Motors |
QuietMode™
Low Speed
Medium Speed
High Speed |
280 cfm (1.2 sones)
420 cfm (2.0 sones)
580 cfm (2.8 sones)
760 cfm (4.5 sones) |
|
| Exhaust Duct |
6" Round Exhaust Duct |
| Attractive Appearance |
The seamless curves and stylish appearance of the hood will compliment any kitchen. |
| Time Delay Controls |
The Time Delay System features a 30-second delay shutoff (1 push On/Off) or immediately shutdown (2 push On/Off). |
| Four Speed Controls |
This model has a four-button control panel - Light button, Speed button (cycles through Low, Medium, High, & QuietMode™), alternate Speed button (cycles through Low, QuietMode™, High, & Medium) and On/Off button. |
| Bright Halogen Light |
Two bright 12-volt 20-watt halogen lights. |
| Filter Option |
Baffle filters |
| Easy to Clean |
KOBE's unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood. |
| Quality |
Parts are checked for defects and designed for trouble free long term use. |
| Easy to Install |
Our special design makes installation fast and easy. |
| Size |
30" |
| Color |
18-Gauge Commercial Grade Stainless Steel - Satin Finish |
| Optional Accessories |
Extension Duct Cover:
Model No. RA0930DC
Stainless Steel Back Splash:
30" Stainless Steel Back Splash - Model No. SSP30
|
|
| View Full Specifications |
|
| View Installation Manual |
|
|
|
| |
 |
|
All units are 5" tall -
430 Stainless Steel
 RA-38 Series |
 RA-38 shown with optional duct cover
3 Speed Vented Models:
330 CFM/1.0 Sones to 720 CFM/4.8 Sones |
Recirculating -4 Speed Models:
150 CFM/2.0 Sones to 400 CFM/4.6 Sones |
3 Speed - RA3830SQ 30" |
Recirculating -
3 Speed - RA3830SQD 30" |
3 Speed - RA3836SQ 36" |
Recirculating -
RA3836SQD 36" |
RA1020 Two Piece Duct Cover Extension Extends 23" - 39" |
Recirculating -
Mesh Filters 6 pcs./ pk |
|
6" tall - 500 CFM/1 Sones to 800 CFM/4.8 Sones
 CH-122
Series |
 CH-122 Series shown with optional duct cover
CH2230SQ 30" |
304 Stainless Steel |
CH2236S 36" |
CH1120DC Duct Cover Extension Extends
20.5" - 37.75" |
|
9" tall - 500 CFM/1 Sones to 800 CFM/4.8
Sones
 CH-179
Series |
CH-179 Series shown with optional duct cover |
304 SS
CH7930SQ 30" |
CH7936SQ 36" |
CH7942SQ 42" |
CH7948SQ 48" |
|
|
11" tall - 280 CFM/1 Sones to 680 CFM/4.8 Sones
 CH-181
36" wide only, includes duct cover |
 CH-181
36" wide only, includes duct cover, shown with optional SS Rack
CH8136SQB |
STAINLESS STEEL RACK |
| |
CH81DC Additional Duct Cover Extension
Extends 14" - 24.25" |
|
12" tall - 400 CFM/1.9 Sones to 600 CFM/4.8
Sones
 RA-92
36" wide only, includes duct cover |
RA-92 36SQ
3 Speeds, 200 CF - 700 CFM |
RA0925DC Additional Duct Cover
Extension
Extends 14 1/4" - 39" |
RA0946DC Additional Duct Cover
Extension
Extends 14 1/4" - 60" |
|
Wall Mount European Style
|
- #304 Stainless Steel with Glass Canopy
- ¥ Voltage 120V 60Hz ¥ Consumption 189W
- Max Wind Pressure (PA) = 290
- CFM/Sone 600 cfm / High 2.8 Sones 400 cfm / Low 1.3 Sones
- Fan Type Squirrel Cage (Centrifugal Blower)
- Exhaust 7" Round Damper Attachment
- Halogen Lights (2) 12V20W
- Body Dimension (WxDxH) 35.5" x 19.63" x 20.38"
- Chimney Dimension 16" ~ 28" length
- Net Weight 48.5 lb
CX1830GS 36" Glass Canopy
|
CX183-21DC Duct Cover Extends
15 3/4 " - 37" |
|
| Optional Accessories:
For All Models
|
#SSP30 30 x 32"
#SSP36 36 x 32"
Carbon Filter for Duct Free use (6" round) for Homes without exhaust duct outlet |
CH-100 Series
 18"
High |
Model
Nos.
CH0030SQB (30")
CH0036SQB (36")
CH0042SQB (42")
CH0048SQB (48") |
All units are 18"
High
Model # |
Width |
Special |
|
12" Duct Cover |
Width |
Special |
CH0030SQB |
30" |
|
|
CH0030-12DC |
30" |
|
CH0036SQB |
36" |
|
|
CH0036-12DC |
36" |
|
CH0042SQB |
42" |
|
|
CH0042-12DC |
42" |
|
CH0048SQB |
48" |
|
|
CH0048-12DC |
48" |
|
|
Quiet-Mode! |
At 400
cfm, this unique feature allows the KOBE range hood to operate at
a reduced sound level of 2.8 sone. Other hoods operate between
6 to 8 sones at a comparable cfm level. |
Powerful
Single Motors*
(For 30", 36", &
42" Hoods) |
Q
uietMode!"
Low
Speed
Medium
Speed
High
Speed |
280
cfm (1.2 Sones)
420
cfm (2.0 Sones)
580
cfm (2.8 Sones)
760
cfm (4.5 Sones) |
Powerful
Dual Motors*
(For 48" Hood) |
Q
uietMode!"
Low
Speed
Medium
Speed
High
Speed |
400
cfm (2.8 Sones)
600 cfm (4.0 Sones)
800
cfm (5.6 Sones)
1000
cfm (8.0 Sones) |
Attractive
Appearance |
The
18-gauge frame and seamless design allow the
hood
to be installed over any cooking system. |
Time
Delay Controls |
The
Time Delay System features a 10-second standby startup and a 30-second
delay shutoff (1 push On/Off) or immediately shutdown (2 push On/Off). |
| Four
Speed Control |
Four-button electronic control - Light, Speed button (cycles
through Low, Medium, High, & QuietMode!"), alternate Speed
button (cycles through Low, QuietMode!", High, & Medium) and On/Off. |
Bright
Halogen Lights |
This
remarkable hood comes with two bright 12-volt 20-watt halogen lights
for 30" and 36", or three halogen lights for 42" and 48". |
| Heating Lamps Socket |
This hood comes with
two heating lamps socket. You can keep your food warm while you are
still cooking. |
| Baffle Filters |
This hood includes
baffle filters - 2 for 30", 36", & 42" hood and 3 for 48" hood. |
Quality |
Parts
are checked for defects and designed for trouble free long term use.
|
| Easy
to Install |
Our
special design makes installation fast and easy. |
| Sizes |
30",
36", 42", 48" |
| Color |
#304
Commercial Grade Stainless Steel - Satin Finish |
Versatile
Installation |
This
versatile hood can be use as a hood liner for custom hood frames,
for under cabinet or for stand alone style with the optional
duct cover. |
Accessories
(Sold Separately) |
Duct
Cover:
Original
Kit - Model No. CH0030DC-12 (For 30" Hood)
Original
Kit - Model No. CH0036DC-12 (For 36" Hood)
Original
Kit - Model No. CH0042DC-12 (For 42" Hood)
Original
Kit - Model No. CH0048DC-12 (For 48" Hood)
Recirculating
Kit - Model No. CH0030RD-12 (For 30" Hood)
Recirculating
Kit - Model No. CH0036RD-12 (For 30" Hood)
Recirculating
Kit - Model No. CH0042RD-12 (For 42" Hood)
Recirculating
Kit - Model No. CH0048RD-12 (For 48" Hood)
Back
Panel:
30" Back Panel - Model No. SSP30
36" Back Panel - Model No. SSP36 |
| *In House Test Static Pressure "0". One Sone is equivalent to the sound
of a refrigerator at 40 decibels. |
|
|
|
