If you are like most people, the only time you use your range hood is when you want to remove excessive steam, smoke, grease, and odors while cooking. During everyday use, ventilation fans are so loud that you tend to ignore the effects that even light cooking create. The QuietModeTM feature is so quiet that not only would it be able to operate your range hood continuously while you are cooking, but also you can leave the hood on when you have finished; to remove the heat without the annoyance of fan noise.
Kobe Island Hoods:

Island Hood Series: IS123, IS124


Side View

Bottom View
  • Hood Dimensions (In.)
    IS2336SQ 36" x 27" x 7"
    IS2342SQ 42" x 27" x 7"
  • IS-123 Model ¥ Finish #304 Commercial Stainless Steel - Satin Finish
  • Power Supply 120V / 60 Hz ¥ Design 18-Gauge Seamless
  • Number of Motors 2
  • Fan Type Turbine Impeller
  • Detachable Oil Containers 2 (Under Impellers)
  • Halogen Light 36" / 42" 12V20W x 2
  • 4 Button Controls - 10 Seconds Standby Startup 30 Seconds Delay Shutoff
  • Speeds 4
  • Chimney Duct Cover Dimensions (In.)
    (IS2336SQ) 11-3/8" x 9-3/8" x (19-1/4"~36")
    (IS2342SQ) 11-3/8" x 9-3/8" x (19-1/4"~36")
  • Net Weight Hoods: 36" 53 lbs, 42" 55 lbs
  • Net Weight Duct Cover: 33 lbs
  • Exhaust Vent Top - 6" Round
  • Speed Air Capacity (cfm) * Sone QuietModeTM Low Medium High 500 640 720 800 1** 2.8 4.5 4.8


Duct Cover Included with each hood Extends 22" - 35"
IS2336SQ 36" Duct Cover Extension Extends 16"
IS2342SQ 42" Duct Cover Extension Extends 33.5" - 59"
Duct Cover Extends 22" - 35"
Included with each hood		 Mesh Filter / Island Safety Screen (6 pk)
*In House Test Static Pressure "0".
**One Sone is equivalent to the sound of a refrigerator at 40 decibels.
Island Hood IS124 Series
Model No. IS2436GSB (36") IS2442GSB (42")
IS2436SB 36"
IS2442SB 42"
IS124DC Two Piece Duct Cover Included with each hood

QuietMode!"

At 300 cfm, this unique feature allows the KOBE range hood to operate at a reduced sound level of 1.0 sone.  Other hoods operate between 6 to 8 sones at  a comparable cfm level.

Powerful Twin Motors*

QuietMode!"

Low Speed

Medium Speed

High Speed

300 cfm (1.0 sone)

480 cfm (2.8 sones)

540 cfm (4.5 sones)

600 cfm (4.8 sones)

Attractive Appearance

The 18-gauge frame and seamless design allow the hood to be installed over any cooking system.

Integrated Sensor Control

 The ISC (Integrated Sensor Control) feature offers automatic gas, smoke and temperature sensor.
Four Speed Control

This model has four different speed from QuietMode!", Low, Medium and High.

Bright Halogen Lights

 This remarkable hood comes with two bright 12-volt 20-watt halogen lights.

No Filter Needed

 Includes two baffle filters (dishwasher safe)

Quality

 Parts are checked for defects and designed for trouble free long term use.
Sizes                    36", 42"
Color       #304 Commercial Grade Stainless Steel - Satin Finish
Required Accessories

Original Kit Model No. IS124DC - Duct Cover

*In House Test Static Pressure "0". One Sone is equivalent to the sound of a refrigerator at 40 decibels.
Kobe Wall Mounted Hoods:

All units are 5" tall -

430 Stainless Steel

RA-38 Series

RA-38 shown with optional duct cover
3 Speed Vented Models:
330 CFM/1.0 Sones to 720 CFM/4.8 Sones
Recirculating -4 Speed Models:
150 CFM/2.0 Sones to 400 CFM/4.6 Sones
3 Speed - RA3830SQ 30"
Recirculating -
3 Speed - RA3830SQD 30"
3 Speed - RA3836SQ 36"
Recirculating -
RA3836SQD 36"
RA1020 Two Piece Duct Cover Extension Extends 23" - 39"
Recirculating -
Mesh Filters 6 pcs./ pk
6" tall - 500 CFM/1 Sones to 800 CFM/4.8 Sones
CH-122 Series
CH-122 Series shown with optional duct cover
CH2230SQ 30"
304 Stainless Steel
CH2236S 36"
CH1120DC Duct Cover Extension Extends 20.5" - 37.75"
9" tall - 500 CFM/1 Sones to 800 CFM/4.8 Sones
CH-179 Series

CH-179 Series shown with optional duct cover
304 SS
CH7930SQ 30"
CH7936SQ 36"
CH7942SQ 42"
CH7948SQ 48"

11" tall - 280 CFM/1 Sones to 680 CFM/4.8 Sones
CH-181
36" wide only, includes duct cover

CH-181
36" wide only, includes duct cover, shown with optional SS Rack

CH8136SQB
STAINLESS STEEL RACK

CH81DC Additional Duct Cover Extension
Extends 14" - 24.25"
12" tall - 400 CFM/1.9 Sones to 600 CFM/4.8 Sones
RA-92 36" wide only, includes duct cover
RA-92 36SQ
3 Speeds, 200 CF - 700 CFM
RA0925DC Additional Duct Cover Extension
Extends 14 1/4" - 39"
RA0946DC Additional Duct Cover Extension
Extends 14 1/4" - 60"
Wall Mount European Style
  • #304 Stainless Steel with Glass Canopy
  • ¥ Voltage 120V 60Hz ¥ Consumption 189W
  • Max Wind Pressure (PA) = 290
  • CFM/Sone 600 cfm / High 2.8 Sones 400 cfm / Low 1.3 Sones
  • Fan Type Squirrel Cage (Centrifugal Blower)
  • Exhaust 7" Round Damper Attachment
  • Halogen Lights (2) 12V20W
  • Body Dimension (WxDxH) 35.5" x 19.63" x 20.38"
  • Chimney Dimension 16" ~ 28" length
  • Net Weight 48.5 lb
CX1830GS 36" Glass Canopy
CX183-21DC Duct Cover Extends 15 3/4 " - 37"
Optional Accessories: For All Models
  • 304 STAINLESS PANEL
#SSP30 30 x 32"
#SSP36 36 x 32"

Carbon Filter for Duct Free use (6" round) for Homes without exhaust duct outlet
CH-100 Series
18" High

Model Nos.

CH0030SQB (30")

CH0036SQB (36")

CH0042SQB (42")

CH0048SQB (48")

All units are 18" High

Model #
Width
Special

12" Duct Cover
Width
Special
CH0030SQB
30"

CH0030-12DC
30"

CH0036SQB
36"

CH0036-12DC
36"

CH0042SQB
42"

CH0042-12DC
42"

CH0048SQB
48"

CH0048-12DC
48"


Quiet-Mode!

At 400 cfm, this unique feature allows the KOBE range hood to operate at a reduced sound level of 2.8 sone.  Other hoods operate between 6 to 8 sones at  a comparable cfm level.

Powerful Single Motors*

(For 30", 36", & 42" Hoods)

QuietMode!"

Low Speed

Medium Speed

High Speed

280 cfm (1.2 Sones)

420 cfm (2.0 Sones)

580 cfm (2.8 Sones)

760 cfm (4.5 Sones)

Powerful Dual Motors*

(For 48" Hood)

QuietMode!"

Low Speed

Medium Speed

High Speed

400 cfm (2.8 Sones)

600 cfm (4.0 Sones)

800 cfm (5.6 Sones)

1000 cfm (8.0 Sones)

Attractive Appearance

The 18-gauge frame and seamless design allow the

hood to be installed over any cooking system.

Time Delay Controls

 The Time Delay System features a 10-second standby startup and a 30-second delay shutoff (1 push On/Off) or immediately shutdown (2 push On/Off).
Four Speed Control

Four-button electronic control - Light, Speed button (cycles through Low, Medium, High, & QuietMode!"), alternate Speed button (cycles through Low, QuietMode!", High,  & Medium) and On/Off.

Bright Halogen Lights

 This remarkable hood comes with two bright 12-volt 20-watt halogen lights for 30" and 36", or three halogen lights for 42" and 48".
Heating Lamps Socket This hood comes with two heating lamps socket. You can keep your food warm while you are still cooking.
Baffle Filters This hood includes baffle filters - 2 for 30", 36", & 42" hood and 3 for 48" hood.

Quality

 Parts are checked for defects and designed for trouble free long term use.
Easy to Install

Our special design makes installation fast and easy.

Sizes                    30", 36", 42", 48"
Color       #304 Commercial Grade Stainless Steel - Satin Finish

Versatile Installation

This versatile hood can be use as a hood liner for custom hood frames, for under cabinet or for stand alone style  with the optional duct cover.

Accessories

(Sold Separately)

Duct Cover:

Original Kit - Model No. CH0030DC-12 (For 30" Hood)

Original Kit - Model No. CH0036DC-12 (For 36" Hood)

Original Kit - Model No. CH0042DC-12 (For 42" Hood)

Original Kit - Model No. CH0048DC-12 (For 48" Hood)

Recirculating Kit - Model No. CH0030RD-12 (For 30" Hood)

Recirculating Kit - Model No. CH0036RD-12 (For 30" Hood)

Recirculating Kit - Model No. CH0042RD-12 (For 42" Hood)

Recirculating Kit - Model No. CH0048RD-12 (For 48" Hood)



Back Panel:

30" Back Panel - Model No. SSP30

36" Back Panel - Model No. SSP36

*In House Test Static Pressure "0". One Sone is equivalent to the sound of a refrigerator at 40 decibels.

KOBE Style

CH-181 36" Wide, Duct Cover Extends 14" - 24.5"
35.25" W x 19.5 D x 11" H

 The smooth, uncluttered styling of KOBE range hood allows you to blend the hood into your kitchen... It is designed to be functional without being the focal point of your room.
  • Duct Cover Included: Extends 14" - 24.5"
  • Attractive Appearance
  • Easy Access Controls
  • Safety Features
  • Optional Carbon Filter for Homes without Exhaust Duct Outlet

 European Style Wall Mount Hoods CH-180 Series
Sizes 36"
CFM (Twin Motor) 680
CFM with QuietModeTM 280
Volume (Twin Motor) Decibel 50-55
Volume with QuietModeTM 38
Voltage 120V/60Hz
RPM (Single Motor) 1680
Blowers 2
Ampere (Twin Motor) 1.45A

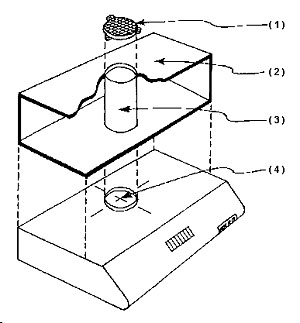

"Carbon Filter" Installation Diagram *Without cabinet NOTE: 1. Carbon filter 2. Duct opening 4. Angle plates screw on the wall "Carbon Filter" Installation Diagram *With bridge cabinet NOTE: 1. Carbon filter 2. Wall bridge cabinet 3. G. I. duct 4. Duct opening
